1972 GTO Exhaust System

The 1972 GTO Systems were the same for both automatic and manual transmission cars however they did change from 2″ to 2 1/4″ head pipes for the std duty and Ram Air cars. The rest of the system consisted of 25″ long mufflers and 2 1/4″ tail pipes that exited behind the rear wheel. The splitter was held into the tail pipe with a lock and key style method. The tail pipe had an expanded section at the end with a formed groove that corresponded to the groove in the splitter. The correct splitter and tail pipe combo has been extinct for a very long time. No longer will the 72 GTO restorer have to settle. Gardner Exhaust is now reproducing the correct reproduction chrome plated splitter and tail pipe combo as original with the correct slotted grooved splitter and correct grooved punched tail pipe. This system will come with correct flanges, clamps, front hangers,attaching hardware, installation instructions diagrams, and sealant Correct reproduction tail hangers are available. Ask about our concourse show package when original just is not good enough.

Ask about our turbo mufflers for a little extra roar!

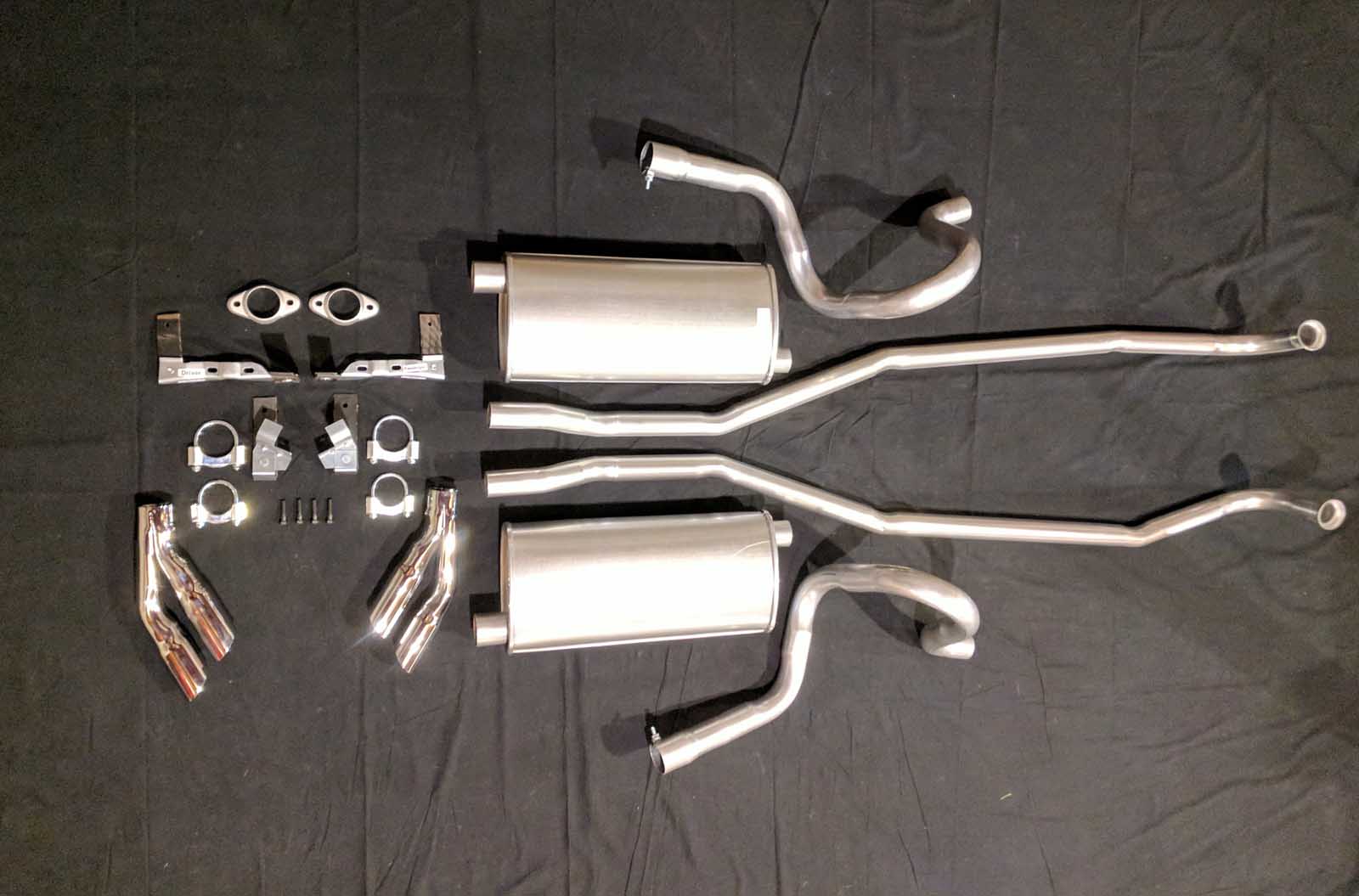

1972 GTO Std. Duty Exhaust Kit

1968 1972 GTO Muffler Hangers

1968 - 1972 GTO hangers originally had a small bulge to correspond to the bulge in the clamps that Pontiac used during the day. These clamps and hangers are an exclusive Gardner Exhaust reproduction and will put your GTO over the top in exhaust restoration correctness. The hanger pictured here comes zinc plated, and hand built with corded rubbers and button head rivets to simulate the original and are availble with any of our 1968 - 1972 GTO exhaust systems.

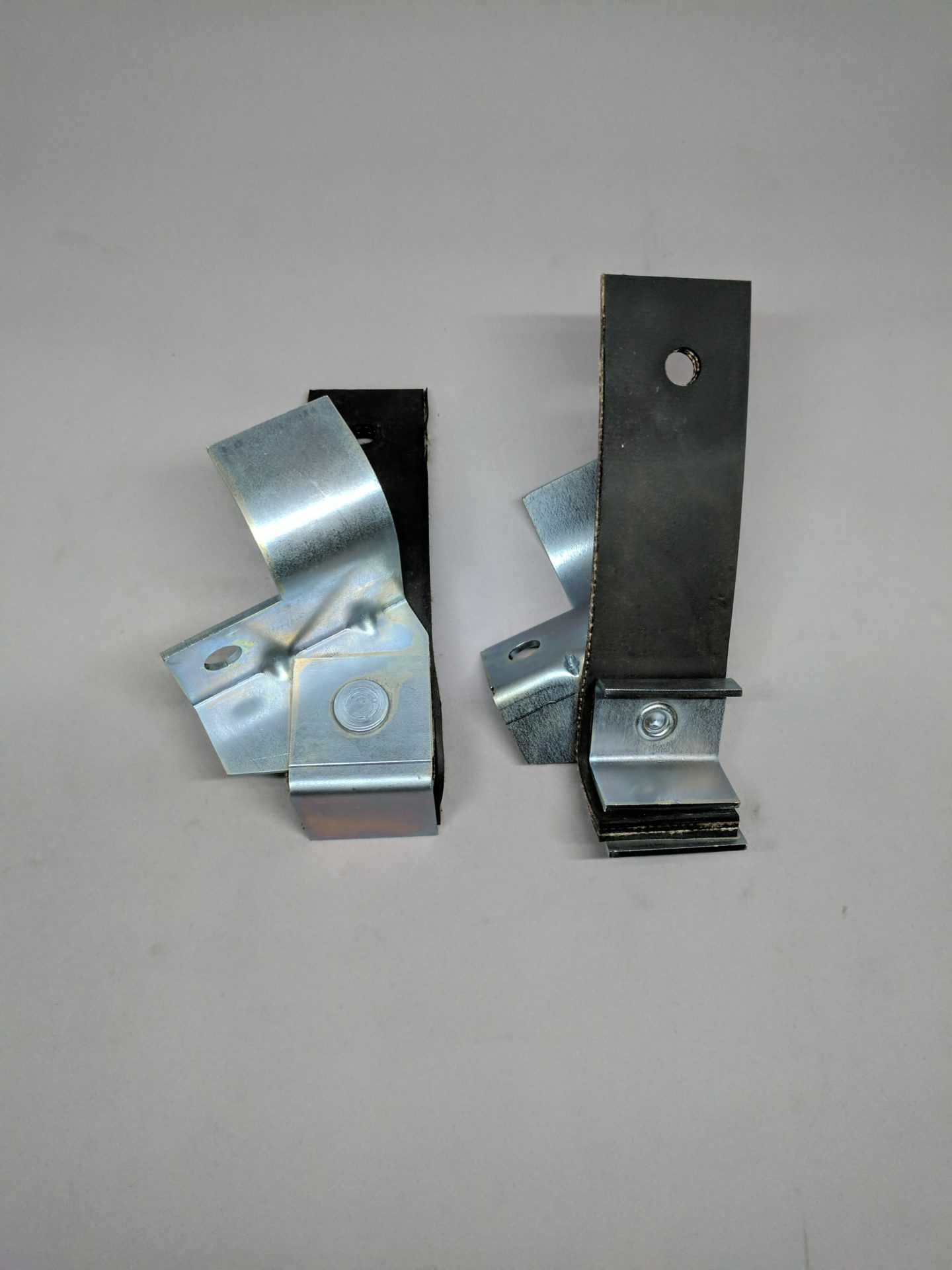

1972 GTO Splitter Tail Hanger

hese hangers are the correct reproduction hangers to hang and clamp down on the 1972 GTO splitter assembly. Although they are not one of our reproductions we were influential in the reproduction process as the company we worked with used original hangers we acqured to duplicate them. They are available with any of our 1972 GTO splitter exhaust systems and come with all the attaching hardware.

1966 - 1972 GTO Round Bottom Clamp

These clamps are absolutely correct for any 1966 to 1972 GTO restoration. There has never been a high quality reproduction of this clamp or the hanger above that corresponds to it. These clamps are a Gardner Exhaust exclusive reproduction they come zinc plated and are available with any of our Pontiac exhaust systems

1964 - 1972 GM A - Body Retainer

These retainers were used on the GM A - Body Muscle cars on the muffler hangers. The attaching screw first went through this reatiner and then through the rubber. The reatainer functioned as a washer to protect the rubber on the hanger. Our retainers have been reproduced from the orginal in the picture and come zinc plated. They are a Gardner EXhaust exclusive reproduction and come standard with our concours show pkg. or can be optioned for with one of our entire systems.

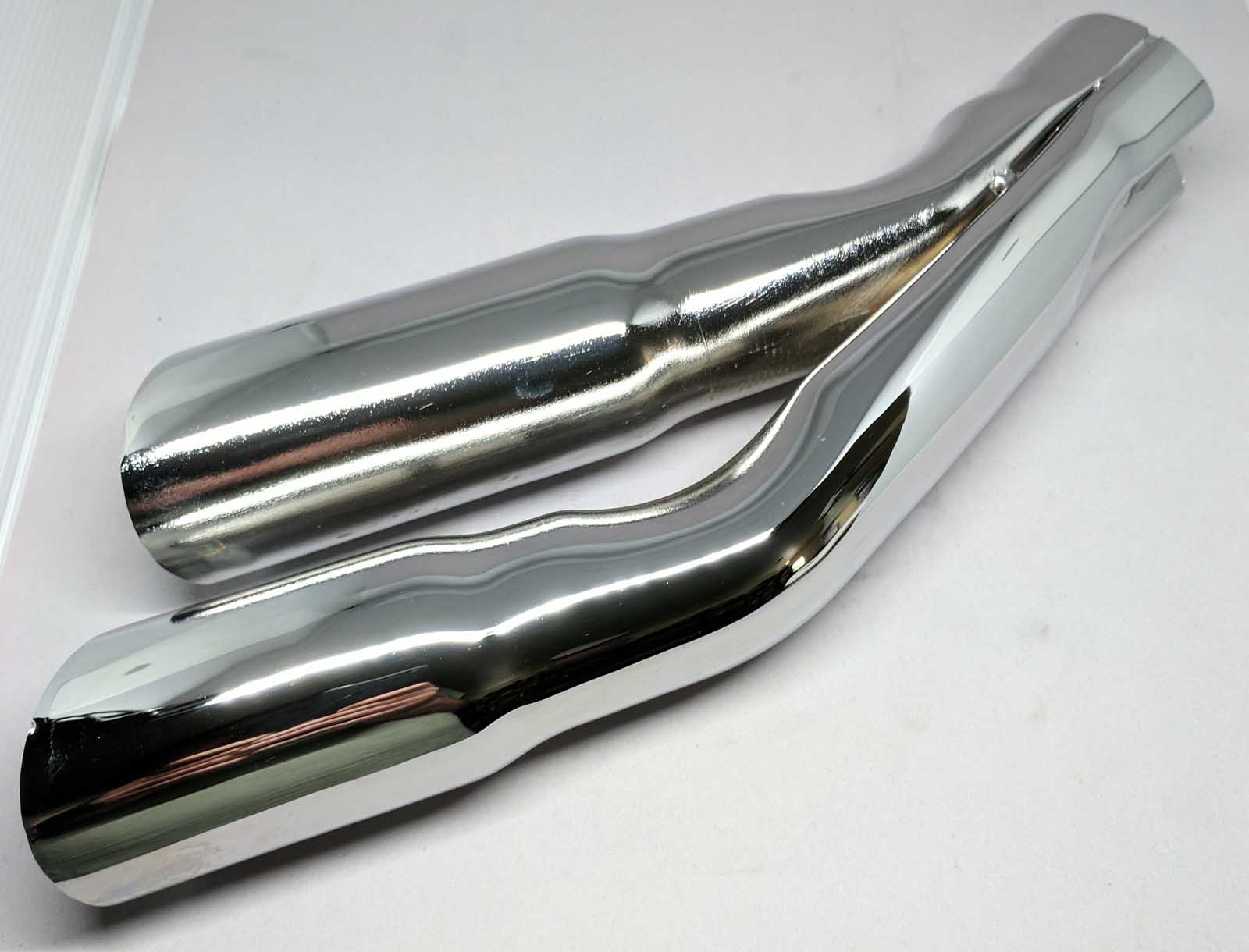

1972 GTO Splitter

This is the correct reproduction splitter for the 1972 GTO. The original splitters used a lock and key method witha v groove and a small punched hole for a carriage bolt. This splitter has been reproduced from the original seen next to it. For the longest time the 72 GTO enthusiast has been forced to put something on their car that is far from what came from the factory no longer does that have to happen. These splitters come chrome plated as original and are available with any of our 1972 GTO systems. They are an identicle reproduction and have been reproduced from the original to the right. We encourage you to compare.

1972 GTO Splitters

The splitter is just to pretty to not show it as it would look in the car.

Sealant

Originally a clear silicon sealant was used in all the joint to joint connections on most exhaust systems. This was referred to as "grease" in the assembly manual but it was a clear sealant like the one pictured here. After analyzing original samples off our pipes and searching incessantly we came up with a match with the sealant pictured here. This sealant comes as part of any Gardner Exhaust Kit
